Stock Process Sheaves & Pulleys
Our Process Sheaves® line of plastic and aluminum lightweight sheaves for Wire and Cable Manufacturing provides you with high quality products for your production equipment, along with the exceptional service and expert engineering advice you expect from eSheaves.com. With over 60 styles available from stock or shipping in less than two weeks, order from esheaves.com and keep your operation running. Click on any of the charts below to review Stock Process Sheaves® specifications and locate the exact fit for your equipment. And as always, if you don’t find what you need, our team of pulley and sheave engineers is available to help design the custom sheaves you need.

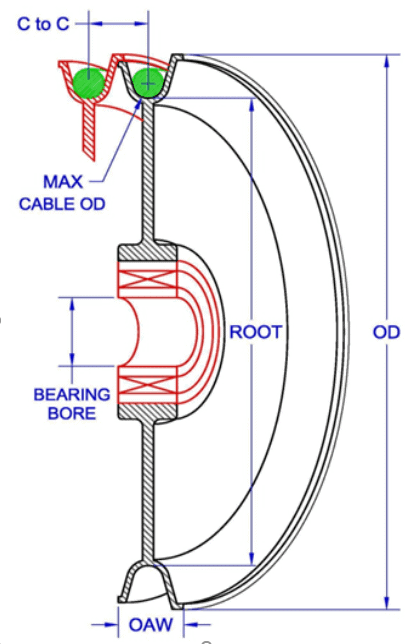

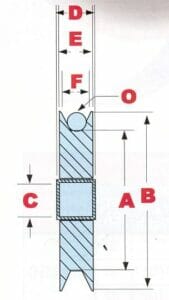

PLASTIC INTERLOCKING SHEAVES - METRIC / INCH BORE
Plastic Interlocking U-Groove Sheaves – Inch Bore
| Root Dia. | Material | OD | Maximum Product | C to C Distance | Nominal Width | OAW | Bearing Bore | Item Number | Item Number |
|---|---|---|---|---|---|---|---|---|---|
| 3 | SX Polymer * | 3.94 | 1/4″ | 0.47 | 0.44 | 0.53 | 1/2 inch | 200 | 30002 |
| 4 | SX Polymer * | 4.75 | 1/4″ | 0.47 | 0.44 | 0.53 | 1/2 inch | 200 | 30004 |
| 5 | SX Polymer * | 5.94 | 1/4″ | 0.53 | 0.5 | 0.59 | 1/2 inch | 200 | 30006 |
| 5.37 | SX Polymer * | 6.56 | 3/16″ | 0.66 | 0.63 | 0.81 | 3/4 inch | 800 | 30008 |
Plastic Interlocking U-Groove Sheaves – Metric Bore
| Root Dia. | Material | OD | Maximum Product | C to C Distance | Nominal Width | OAW | Bearing Bore | Item Number |
|---|---|---|---|---|---|---|---|---|
| 3 | SX Polymer * | 3.94 | 1/4″ | 0.47 | 0.44 | 0.53 | 12mm | 30001 |
| 4 | SX Polymer * | 4.75 | 1/4″ | 0.47 | 0.44 | 0.53 | 12mm | 30003 |
| 5 | SX Polymer * | 5.94 | 1/4″ | 0.53 | 0.5 | 0.59 | 12mm | 30005 |
| 5.37 | SX Polymer * | 6.56 | 3/16″ | 0.66 | 0.63 | 0.81 | 30mm | 30007 |
| 8 | Cast Nylon | 9.5 | 1/2″ | 0.94 | 1.06 | 30mm | 105106 | |
| 8 | SX Polymer * | 9.83 | 0.36 | 0.79 | 0.74 | 0.89 | 30mm | 152080 |
| 9 | SX Polymer * | 10.69 | 0.74 | 1.04 | 0.99 | 1.14 | 30mm | 152090 |
| 10 | SX Polymer * | 11 | 0.34 | 0.57 | 0.51 | 0.6 | 30mm | 152100 |
| 12 | SX Polymer * | 13.5 | 0.5 | 0.79 | 0.74 | 0.86 | 30mm | 152120 |
| 12 | Cast Nylon | 14.38 | 5/8″ | 1.12 | 1.06 | 1.19 | 30mm | 105107 |

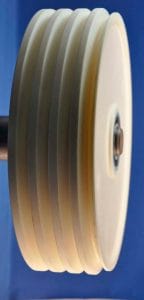

Plastic Interlocking V-Groove Sheaves-Metric Bore
| Root Dia. | Material | OD | Maximum Product | C to C Distance | Nominal Width | OAW | Bearing Bore | Item Number |
|---|---|---|---|---|---|---|---|---|
| 4 | SX Polymer * | 4.5 | 0.18 | 0.47 | 0.39 | 0.53 | 17mm | 151040 |
| 5 | SX Polymer * | 6 | 0.18 | 0.57 | 0.47 | 0.59 | 17mm | 151050 |
| 6 | SX Polymer * | 7 | 0.2 | 0.9 | 0.71 | 0.98 | 20mm | 151060 |
| 7 | SX Polymer * | 8 | 0.18 | 0.71 | 0.59 | 0.76 | 20mm | 151070 |
| 8 | SX Polymer * | 9.5 | 0.16 | 0.71 | 0.59 | 0.77 | 25mm | 151080 |
| 10 | SX Polymer * | 11 | 0.18 | 0.82 | 0.63 | 0.9 | 30mm | 151100 |
LARGE PLASTIC PROCESS SHEAVES - METRIC / INCH BORE
Plastic Large U-Groove Sheaves-Metric / Inch Bore
| Root Dia. | Material | OD | Maximum Product | C to C Distance | __ | OAW | Bearing Bore | Item Number |
|---|---|---|---|---|---|---|---|---|
| 8 | SX Polymer * | 9.5 | 1/2″ | 1 | 0.94 | 30mm | 30019 | |
| 12 | SX Polymer * | 14 | 5/8″ | 1.12 | 1.06 | 30mm | 30020 | |
| 13 | Cast Nylon | 15 | 1/2″ | 1.31 | 1.25 | 1-1/2″ | 105125 | |
| 13 | Cast Nylon | 15 | 3/8″ | 1.06 | 1 | 1-1/2″ | 105136 | |
| 13 | SX Polymer * | 15 | 3/4″ | 1.31 | 1.25 | 1-1/2″ | 30016 | |
| 14 | SX Polymer * | 15.75 | 15/16″ | 1 | 1.25 | 40mm | 30018 | |
| 14 | SX Polymer * | 15.75 | 15/16″ | 1 | 1.25 | 3/4″ | 30023 | |
| 16 | Cast Nylon | 18.25 | 15/16″ | 1.18 | 1.4375 | 40mm | 105108 | |
| 20 | Cast Nylon | 22.25 | 15/16″ | 1.5 | 1.4375 | 40mm | 105109 | |
| 24 | Cast Nylon | 27 | 1-1/2″ | 2.18 | 2.125 | 40mm | 105110 | |
| 30 | Cast Nylon | 34 | 1-3/4″ | 2.44 | 2.375 | 40mm | 105111 | |
| 36 | Cast Nylon | 40 | 2″ | 2.8 | 2.75 | 50mm | 105112 | |
| 48 | Cast Nylon | 54 | 3″ | 4.12 | 4 | 50mm | 105113 | |
Plastic Flat Groove Sheaves-Metric / Inch Bore
| Root Dia. | Material | OD | Maximum Product | C to C Distance | Nominal Width | OAW | Bearing Bore | Item Number |
|---|---|---|---|---|---|---|---|---|
| 7.5 | SX Polymer * | 9 | 1/2″ | 0.84 | 0.94 | 30mm | 30091 | |
| 13 | Cast Nylon | 15 | 1″ | 1.31 | 1.25 | 1-1/2″ | 105126 | |
| 13 | SX Polymer * | 15 | 1″ | 1.31 | 1.25 | 1-1/2″ | 30017 | |
| 16 | Cast Nylon | 18.25 | 1-1/16″ | 1.5 | 1.4375 | 40mm | 105114 | |
| 20 | Cast Nylon | 22.25 | 1″ | 1.5 | 1.4375 | 40mm | 105115 | |
ALUMINUM SPECIALTY PROCESS SHEAVES - METRIC
Aluminum U-Groove Interlocking Sheaves-Metric Bore
| Root Dia. | Material | OD | Maximum Product | C to C Distance | Nominal Width | OAW | Bearing Bore | Item Number |
|---|---|---|---|---|---|---|---|---|
| 5 | Alum-Ceramic | 5.9375 | 1/4″ | 0.53 | 0.5 | 0.59375 | 12mm | 105103 |
| 8 | Alum-Ceramic | 9.5 | 1/2″ | 0.97 | 0.94 | 1.06 | 30mm | 105104 |
| 12 | Alum-Ceramic | 14.38 | 5/8″ | 1.09 | 1.06 | 1.19 | 30mm | 105105 |
| 5 | Aluminum | 5.9375 | 1/4″ | 0.5 | 0.5 | 0.59375 | 12mm | 105100 |
| 8 | Aluminum | 9.5 | 1/2″ | 0.97 | 0.94 | 1.06 | 30mm | 105101 |
| 12 | Aluminum | 14.38 | 5/8″ | 1.06 | 1.06 | 1.19 | 30mm | 105102 |
60 Rc Ceramic Teflon Hard Surface applied to Alum-Ceramic Sheaves
Optional Bearing Bores Available
